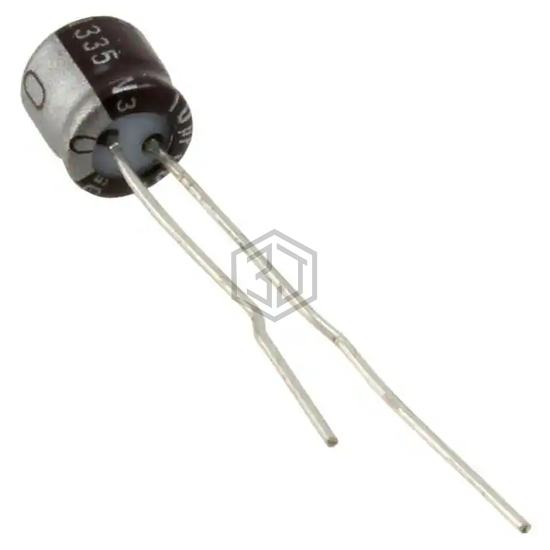

CAP ALUM 22UF 20% 10V RADIAL
UMV1A220MFD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,231
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV1A220MFD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1A220MDD | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 100% | View |
| ESW226M010AC3AA | KEMET | CAP ALUM 22UF 20% 10V RADIAL | 100% | View |
| UMT1A220MDD1TP | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 100% | View |
| 672D226F250EN4D | Vishay Sprague | CAP ALUM 22UF 250V RADIAL | 56% | View |
| SEK220M400ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 400V RADIAL | 56% | View |
| 672D226H250ET5C | Vishay Sprague | CAP ALUM 22UF 250V RADIAL | 56% | View |
Submit your RFQ for UMV1A220MFD and get a quote within 24 hours.
