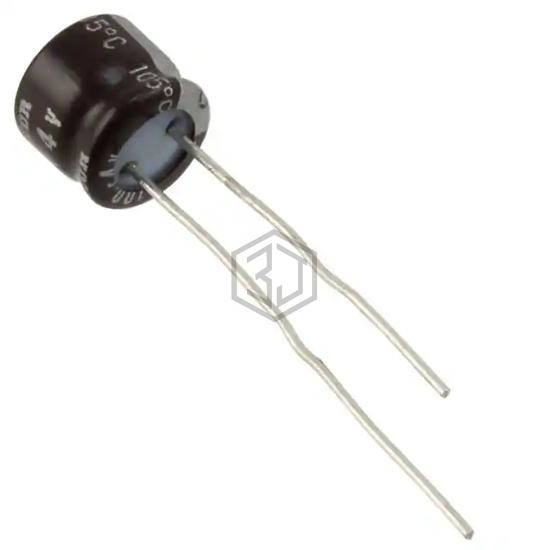

CAP ALUM 100UF 20% 4V RADIAL
UMV0G101MFD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 4V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 6,734
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMV0G101MFD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT0J101MDD1TP | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 86% | View |
| UST0J101MDD | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 74% | View |
| UPV0J101MFD | Nichicon | CAP ALUM 100UF 20% 6.3V RADIAL | 71% | View |
| 10YXA100MEFCTA5X11 | Rubycon | CAP ALUM 100UF 20% 10V RADIAL | 57% | View |
| 672D107H050DT5J | Vishay Sprague | CAP ALUM 100UF 50V RADIAL | 56% | View |
| VHT100M10 | NTE Electronics, Inc | CAP ALUM 100UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for UMV0G101MFD1TE and get a quote within 24 hours.
