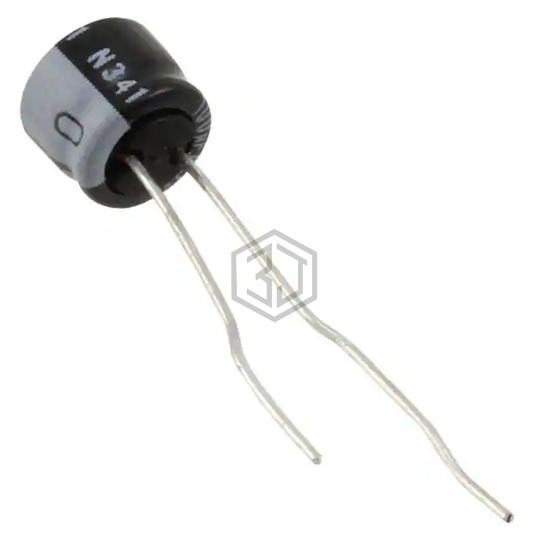

CAP ALUM 22UF 20% 35V RADIAL
UMT1V220MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,335
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1V220MDD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35NXA22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 35V RADIAL | 97% | View |
| URZ1V220MDD1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 93% | View |
| EEA-GA1V220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 88% | View |
| UST1E220MDD1TP | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 84% | View |
| UST1E220MDD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 84% | View |
| UEP1E220MED1TA | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 82% | View |
