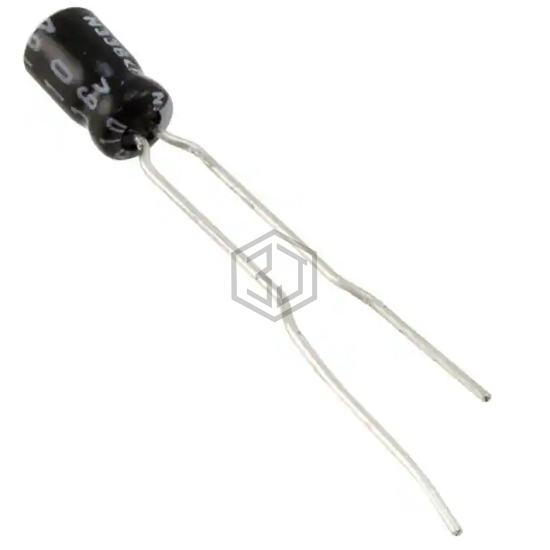

CAP ALUM 0.47UF 20% 50V RADIAL
UMT1HR47MCD2 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,054
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.7 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1HR47MCD2 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UST1HR47MDD1TP | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 87% | View |
| UST1HR47MDD | Nichicon | CAP ALUM 0.47UF 20% 50V RADIAL | 87% | View |
| EEU-HD1HR47B | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 80% | View |
| ECA-1HHGR47 | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V RADIAL | 80% | View |
| B41866A6474M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 79% | View |
| B41043A6474M | EPCOS - TDK Electronics | CAP ALUM 0.47UF 20% 50V RADIAL | 73% | View |
