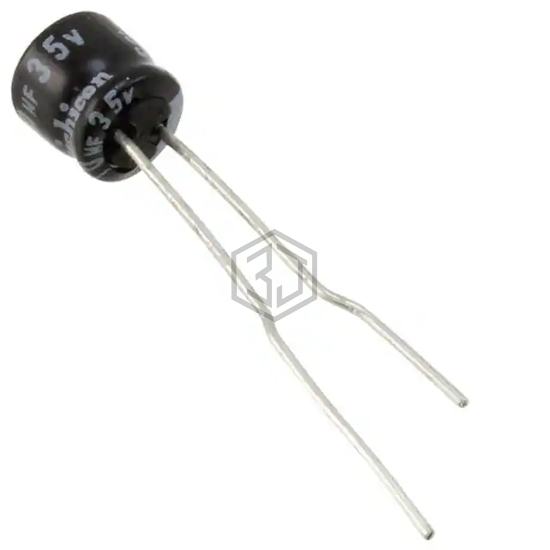

CAP ALUM 0.33UF 20% 50V RADIAL
UMT1HR33MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.33UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 7,690
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1HR33MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT1HR33MCD2TP | Nichicon | CAP ALUM 0.33UF 20% 50V RADIAL | 100% | View |
| UST1HR33MDD1TE | Nichicon | CAP ALUM 0.33UF 20% 50V RADIAL | 96% | View |
| UST1HR33MDD1TP | Nichicon | CAP ALUM 0.33UF 20% 50V RADIAL | 96% | View |
| URZ1HR33MDD1TA | Nichicon | CAP ALUM 0.33UF 20% 50V RADIAL | 89% | View |
| URZ1HR33MDD1TD | Nichicon | CAP ALUM 0.33UF 20% 50V RADIAL | 89% | View |
| EEU-HD1HR33B | Panasonic Electronic Components | CAP ALUM 0.33UF 20% 50V RADIAL | 89% | View |
