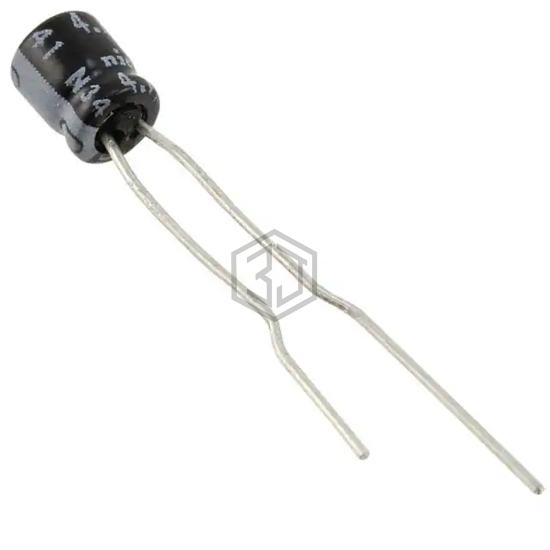

CAP ALUM 0.22UF 20% 50V RADIAL
UMT1HR22MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,688
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.6 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.9 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1HR22MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT1HR22MCD2 | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 100% | View |
| ECE-A1HKGR22 | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V RADIAL | 96% | View |
| UST1HR22MDD1TE | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 94% | View |
| URZ1HR22MDD1TA | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 93% | View |
| UKT1HR22MDD | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 88% | View |
| UVZ1HR22MDH | Nichicon | CAP ALUM 0.22UF 20% 50V RADIAL | 88% | View |
Submit your RFQ for UMT1HR22MDD and get a quote within 24 hours.
