CAP ALUM 4.7UF 20% 25V RADIAL

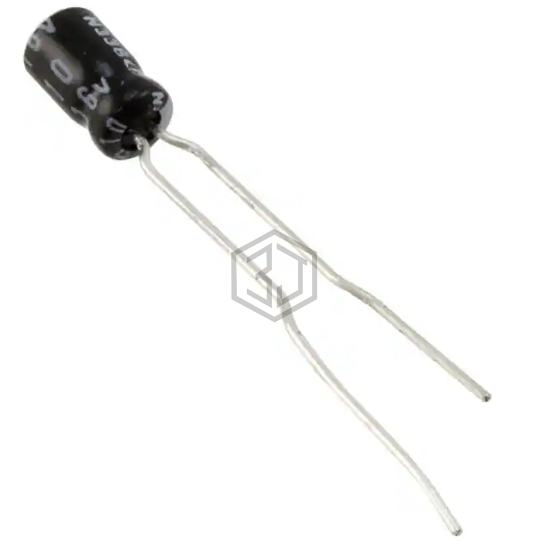

UMT1E4R7MCD2TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,285
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 15 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1E4R7MCD2TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT1E4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 25V RADIAL | 87% | View |
| UMT1E4R7MDD1TE | Nichicon | CAP ALUM 4.7UF 20% 25V RADIAL | 87% | View |
| UMT1V4R7MDD1TP | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 70% | View |
| 600D565D350DG5 | Vishay Sprague | CAP ALUM 5.6UF 35V AXIAL | 64% | View |
| 672D475H200CG5C | Vishay Sprague | CAP ALUM 4.7UF 200V RADIAL | 56% | View |
| SEK4R7M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UMT1E4R7MCD2TP and get a quote within 24 hours.
