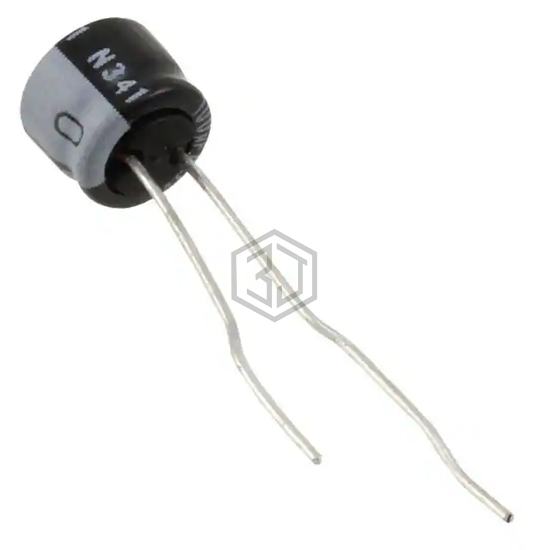

CAP ALUM 33UF 20% 25V RADIAL
UMT1E330MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,327
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1E330MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336PGM025M | Cornell Dubilier Knowles | ELECTROLYTIC/IC | 93% | View |
| UVZ1E330MDD1TA | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 89% | View |
| URZ1E330MDD1TA | Nichicon | CAP ALUM 33UF 20% 25V RADIAL | 88% | View |
| 336RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V RADIAL | 78% | View |
| RJA330M1VBK-0511S | Surge | CAP ALUM 35V POLAR | 68% | View |
| UKT0J330MDD1TD | Nichicon | CAP ALUM 33UF 20% 6.3V RADIAL | 67% | View |
Submit your RFQ for UMT1E330MDD1TP and get a quote within 24 hours.
