CAP ALUM 47UF 20% 16V RADIAL

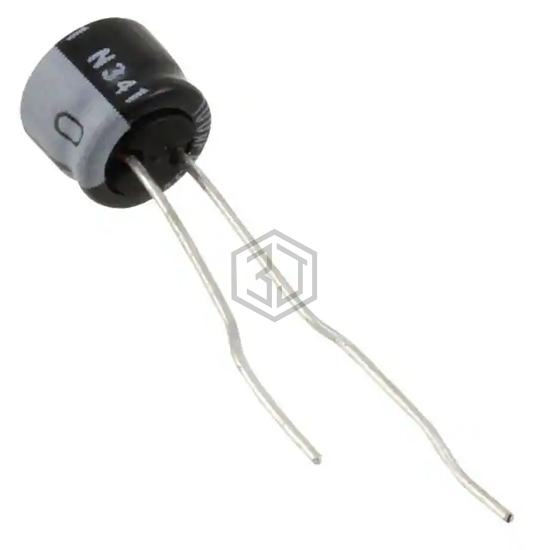

UMT1C470MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,082
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1C470MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1CHG470I | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V RADIAL | 79% | View |
| UPW1C470MDD1TD | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 77% | View |
| UMF1A470MDD1TE | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 72% | View |
| MAL211636479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V RADIAL | 64% | View |
| SEK470M063ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
| 672D476H050CG3C | Vishay Sprague | CAP ALUM 47UF 50V RADIAL | 56% | View |
Submit your RFQ for UMT1C470MDD1TP and get a quote within 24 hours.
