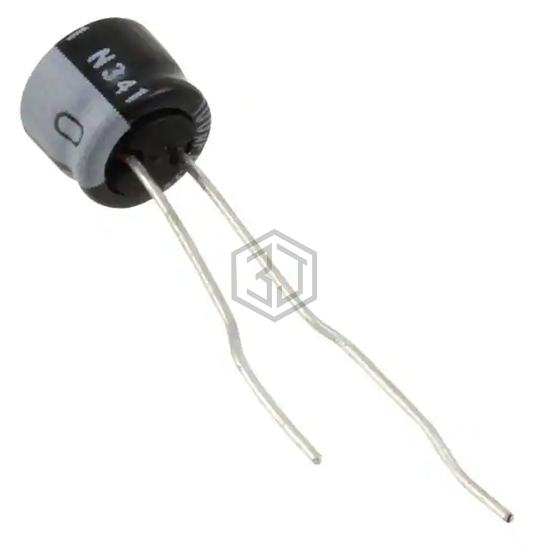

CAP ALUM 47UF 20% 16V RADIAL
UMT1C470MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,897
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1C470MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG16VB47RM5X11LL | United Chemi-Con | CAP ALUM 47UF 20% 16V RADIAL | 100% | View |
| UEP1C470MED | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 79% | View |
| MAL212363479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 6.3V AXIAL | 67% | View |
| KMG6.3VB47RM5X11LL | United Chemi-Con | CAP ALUM 47UF 20% 6.3V RADIAL | 67% | View |
| 25PX47MEFC5X11 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 62% | View |
| ELXY630ELL470MJC5S | United Chemi-Con | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
