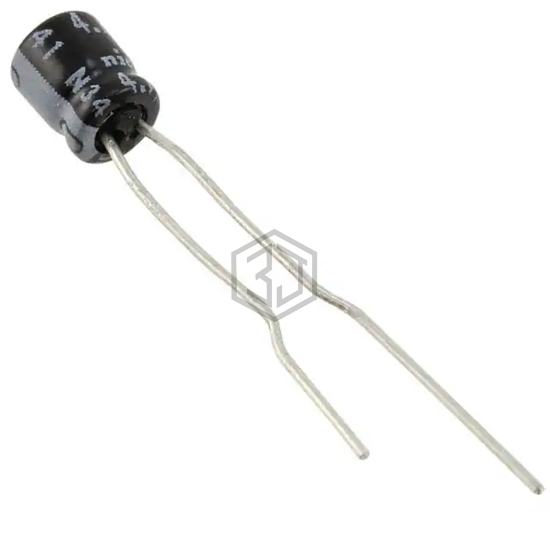

CAP ALUM 10UF 20% 16V RADIAL
UMT1C100MDD1TE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,501
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1C100MDD1TE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1CHG100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V RADIAL | 100% | View |
| UMT1C100MCD2 | Nichicon | CAP ALUM 10UF 20% 16V RADIAL | 88% | View |
| MAL212365109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 16V AXIAL | 82% | View |
| UMT1E100MDD1TP | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 75% | View |
| SEK100M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V RADIAL | 71% | View |
| 672D106H250DT5C | Vishay Sprague | CAP ALUM 10UF 250V RADIAL | 56% | View |
