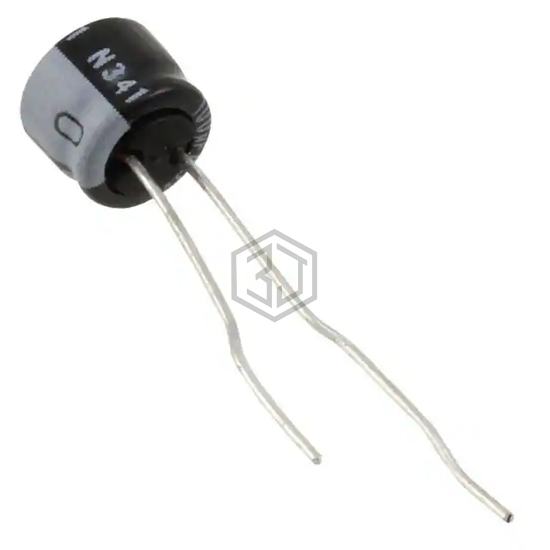

CAP ALUM 47UF 20% 10V RADIAL
UMT1A470MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,790
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 46 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT1A470MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1A470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 10V RADIAL | 83% | View |
| USF1A470MDD1TP | Nichicon | CAP ALUM 47UF 20% 10V RADIAL | 82% | View |
| MAL212324479 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 10V AXIAL | 81% | View |
| MAL212315479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 16V AXIAL | 70% | View |
| UEP1C470MED1TD | Nichicon | CAP ALUM 47UF 20% 16V RADIAL | 68% | View |
| RXW470M1EBK-0511S | SURGE | CAP ALUM 47UF 20% 25V RADIAL | 56% | View |
