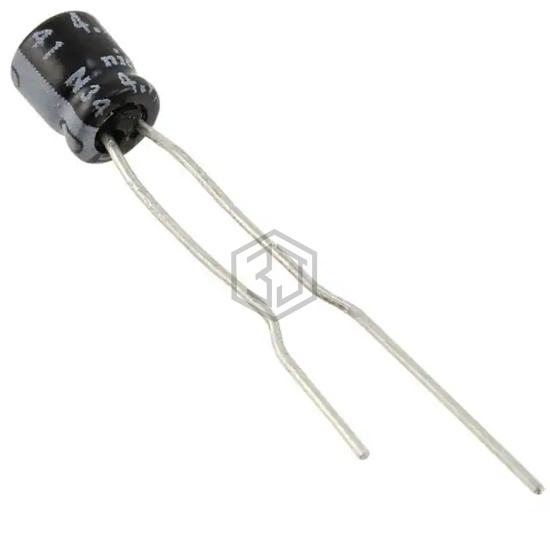

CAP ALUM 22UF 20% 4V RADIAL
UMT0G220MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 4V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 2,737
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
| Ripple Current @ High Frequency | 33 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMT0G220MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT0G220MDD | Nichicon | CAP ALUM 22UF 20% 4V RADIAL | 100% | View |
| UMT0J220MDD1TP | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 86% | View |
| UMF0J220MDD | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 73% | View |
| UKA0J220MDD | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 58% | View |
| 672D226F200DT5D | Vishay Sprague | CAP ALUM 22UF 200V RADIAL | 56% | View |
| MAL212317229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 40V AXIAL | 56% | View |
Submit your RFQ for UMT0G220MDD1TP and get a quote within 24 hours.
