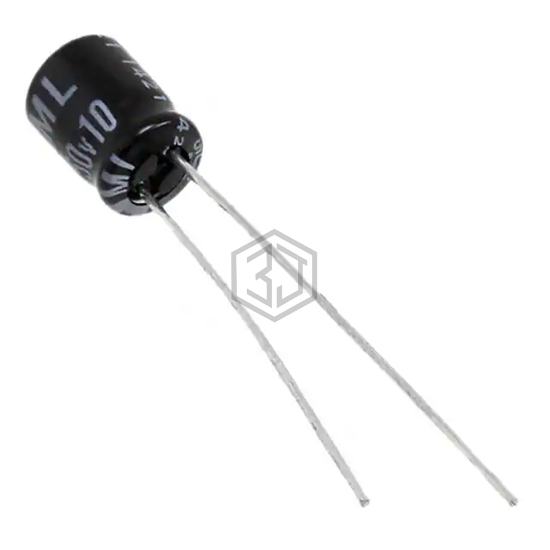

CAP ALUM 4.7UF 20% 50V RADIAL
UML1H4R7MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMW1H4R7MDD | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 100% | View |
| 50PX4R7MEFC5X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 85% | View |
| UEP1J4R7MDD | Nichicon | CAP ALUM 4.7UF 20% 63V RADIAL | 76% | View |
| RZW4R7M1HBK-0511S | SURGE | CAP ALUM 4.7UF 20% 50V RADIAL | 64% | View |
| UGB1H4R7KHM | Nichicon | CAP ALUM 4.7UF 10% 50V RADIAL | 64% | View |
| 50YXF4.7MEFCTA5X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 60% | View |
