CAP ALUM 6.8UF 20% 25V RADIAL

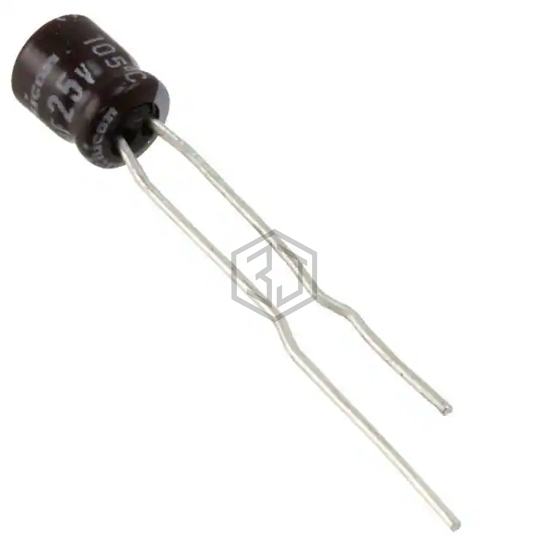

UMF1E6R8MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,160
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UMF1E6R8MDD and get a quote within 24 hours.
