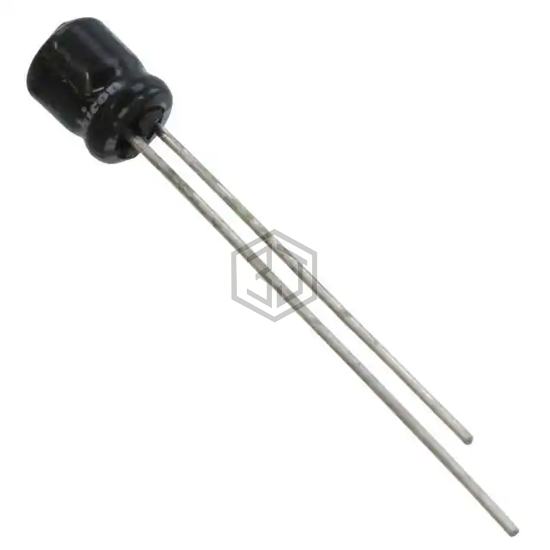

CAP ALUM 3.3UF 20% 35V RADIAL
UMA1V3R3MDD1TP is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,999
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMA1V3R3MDD1TP is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMA1V3R3MDD1TE | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 100% | View |
| 35MS53.3MEFC4X5 | Rubycon | CAP ALUM 3.3UF 20% 35V RADIAL | 89% | View |
| 50ML3.3MEFCTZ4X5 | Rubycon | CAP ALUM 3.3UF 20% 50V RADIAL | 83% | View |
| UMP1H3R3MDD | Nichicon | CAP ALUM 3.3UF 20% 50V RADIAL | 83% | View |
| 50MS53.3MEFCTZ4X5 | Rubycon | CAP ALUM 3.3UF 20% 50V RADIAL | 81% | View |
| EEU-HD1H3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V RADIAL | 64% | View |
Submit your RFQ for UMA1V3R3MDD1TP and get a quote within 24 hours.
