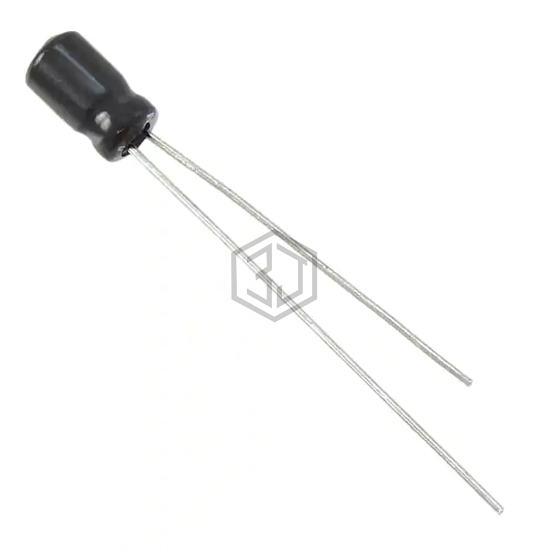

CAP ALUM 3.3UF 20% 25V RADIAL
UMA1E3R3MCD2 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,367
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 mA @ 120 Hz |
| Ripple Current @ High Frequency | 15 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.039" (1.00mm) |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UMA1E3R3MCD2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UMT1V3R3MCD2TP | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 85% | View |
| UMT1V3R3MCD2 | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 85% | View |
| MAL212360338E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 35V AXIAL | 75% | View |
| UMP1V3R3MDD | Nichicon | CAP ALUM 3.3UF 20% 35V RADIAL | 67% | View |
| VHT3.3M63 | NTE Electronics, Inc | CAP ALUM 3.3UF 20% 63V RADIAL | 56% | View |
| SK3R3M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 3.3UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UMA1E3R3MCD2 and get a quote within 24 hours.
