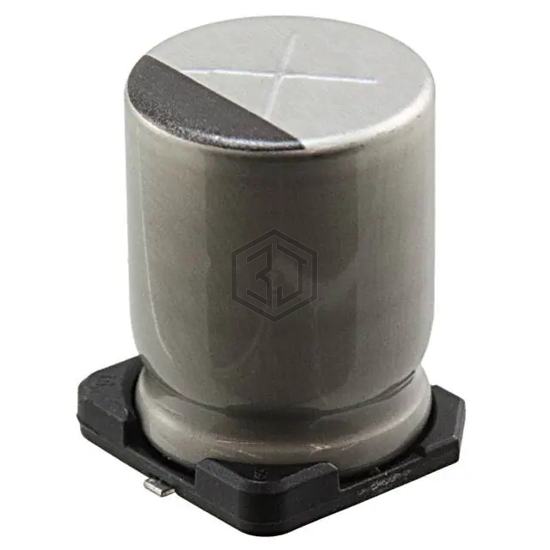

CAP ALUM 18UF 20% 250V SMD
ULV2E180MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 18UF 20% 250V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - SMD.
In Stock: 5,026
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 88 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULT2E180MNL1GS | Nichicon | CAP ALUM 18UF 20% 250V SMD | 94% | View |
| ULT2D180MNL1GS | Nichicon | CAP ALUM 18UF 20% 200V SMD | 91% | View |
| ULV2D180MNL1GS | Nichicon | CAP ALUM 18UF 20% 200V SMD | 85% | View |
| ULH2C180MNL1GS | Nichicon | CAP ALUM 18UF 20% 160V SMD | 84% | View |
| UUX2C180MNL1GS | Nichicon | CAP ALUM 18UF 20% 160V SMD | 78% | View |
| EEE-FN1V180UR | Panasonic Electronic Components | CAP ALUM 18UF 20% 35V SMD | 77% | View |
