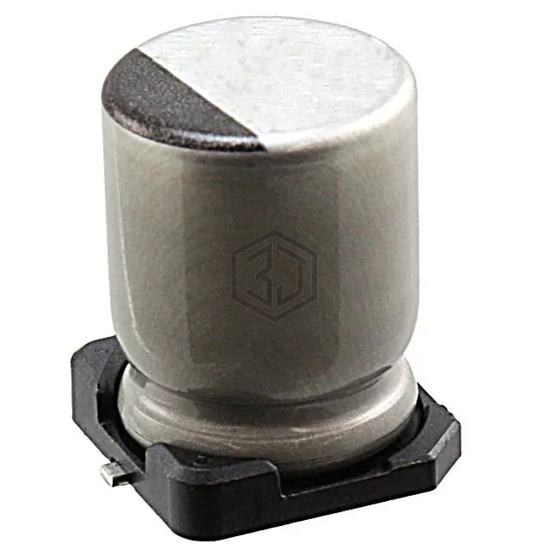

CAP ALUM 12UF 20% 200V SMD
ULV2D120MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 1,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULR2D120MNL1GS | Nichicon | CAP ALUM 12UF 20% 200V SMD | 100% | View |
| ULT2D120MNL1GS | Nichicon | CAP ALUM 12UF 20% 200V SMD | 97% | View |
| ULH2C120MNL1GS | Nichicon | CAP ALUM 12UF 20% 160V SMD | 87% | View |
| ULH2E120MNL1GS | Nichicon | CAP ALUM 12UF 20% 250V SMD | 87% | View |
| ULT2E150MNL1GS | Nichicon | CAP ALUM 15UF 20% 250V SMD | 76% | View |
| ULR2G120MNL1GS | Nichicon | CAP ALUM 12UF 20% 400V SMD | 74% | View |
Submit your RFQ for ULV2D120MNL1GS and get a quote within 24 hours.
