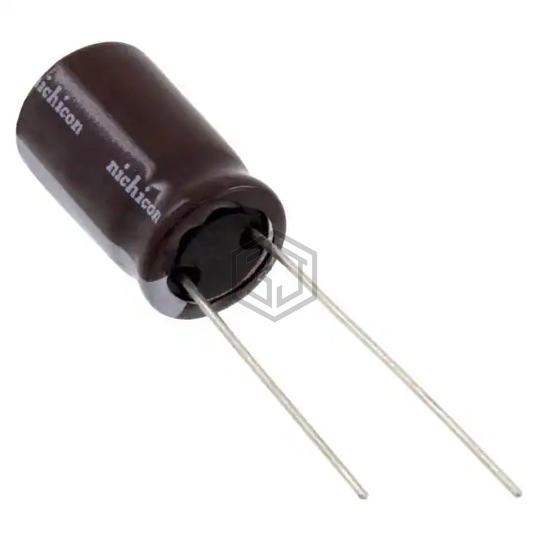

CAP ALUM 6.8UF 20% 450V RADIAL
ULD2W6R8MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,800
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 117.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for ULD2W6R8MPD and get a quote within 24 hours.
