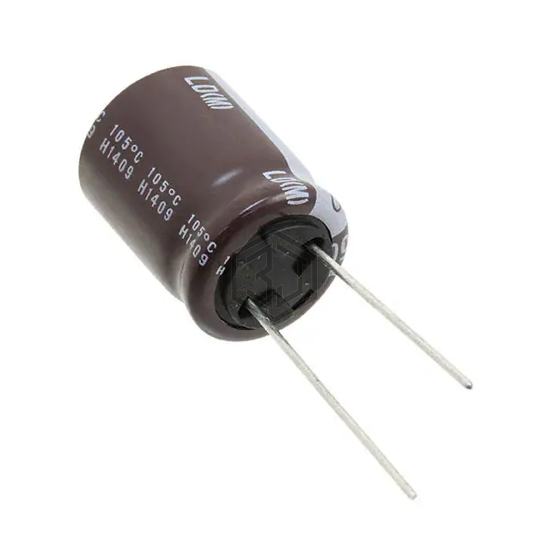

CAP ALUM 22UF 20% 450V RADIAL
ULD2W220MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 5,889
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 292 mA @ 120 Hz |
| Ripple Current @ High Frequency | 554.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2W220MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXN451ELL220MK16S | Chemi-Con | CAP ALUM 22UF 20% 450V RADIAL TH | 93% | View |
| 400CXW22MEFR8X35 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 77% | View |
| UBW2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 71% | View |
| MAL215263229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 250V RADIAL | 60% | View |
| VHT22M35 | NTE Electronics, Inc | CAP ALUM 22UF 20% 35V RADIAL | 56% | View |
| 400PX22MEFC12.5X20 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 56% | View |
