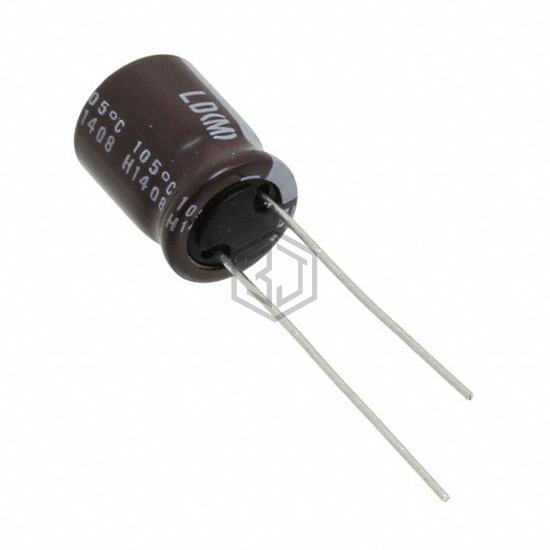

CAP ALUM 12UF 20% 250V RADIAL
ULD2E120MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,215
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 97 mA @ 120 Hz |
| Ripple Current @ High Frequency | 184.3 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2E120MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXF251ELL120MJC5S | United Chemi-Con | CAP ALUM 12UF 20% 250V RADIAL TH | 93% | View |
| 400AX12MEFC10X12.5 | Rubycon | CAP ALUM 12UF 20% 400V RADIAL | 80% | View |
| 600D126F200DG4 | Vishay Sprague | CAP ALUM 12UF 200V AXIAL | 72% | View |
| EEU-FC1H120 | Panasonic Electronic Components | CAP ALUM 12UF 20% 50V RADIAL | 69% | View |
| UCY2V120MPD1TD | Nichicon | CAP ALUM 12UF 20% 350V RADIAL | 65% | View |
| EEA-FC1V120H | Panasonic Electronic Components | CAP ALUM 12UF 20% 35V RADIAL | 63% | View |
Submit your RFQ for ULD2E120MPD and get a quote within 24 hours.
