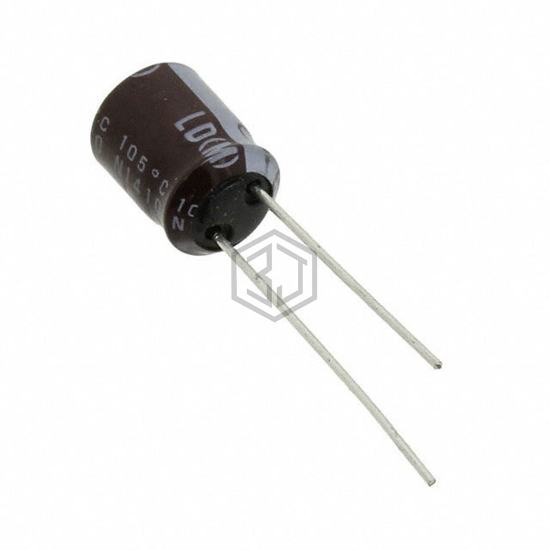

CAP ALUM 8.2UF 20% 200V RADIAL
ULD2D8R2MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8.2UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,335
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 66 mA @ 120 Hz |
| Ripple Current @ High Frequency | 125.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2D8R2MPD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200LLE8R2MEFC8X9 | Rubycon | CAP ALUM 8.2UF 20% 200V RADIAL | 100% | View |
| 250LLE8.2MEFC10X9 | Rubycon | CAP ALUM 8.2UF 20% 250V RADIAL | 87% | View |
| 250LEX8R2MEFC10X9 | Rubycon | CAP ALUM 8.2UF 20% 250V RADIAL | 87% | View |
| UVC2G8R2MPD | Nichicon | CAP ALUM 8.2UF 20% 400V RADIAL | 72% | View |
| 100ZLH8.2MEFCTA5X11 | Rubycon | CAP ALUM 8.2UF 20% 100V RADIAL | 72% | View |
| 100ZLJ8.2MTA5X11 | Rubycon | CAP ALUM 8.2UF 20% 100V RADIAL | 57% | View |
Submit your RFQ for ULD2D8R2MPD1TD and get a quote within 24 hours.
