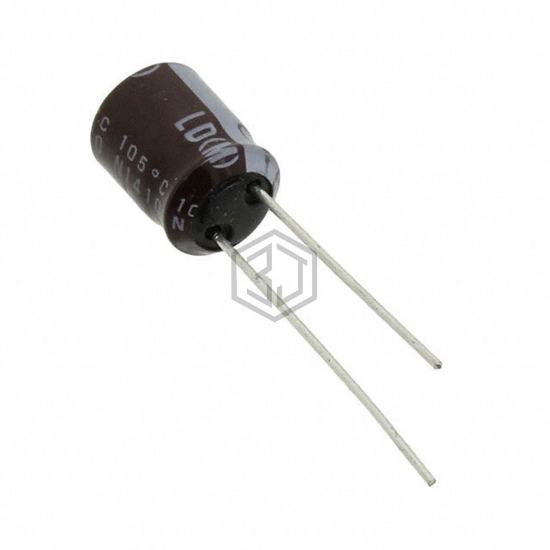

CAP ALUM 6.8UF 20% 200V RADIAL
ULD2D6R8MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 4,338
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 117.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2D6R8MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200LEX6.8MEFC8X9 | Rubycon | CAP ALUM 6.8UF 20% 200V RADIAL | 100% | View |
| ULD2C6R8MED1TD | Nichicon | CAP ALUM 6.8UF 20% 160V RADIAL | 87% | View |
| MALREKB00DC168N00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 250V RADIAL | 87% | View |
| MALREKB00DC168NG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 250V RADIAL | 87% | View |
| 860240672001 | Würth Elektronik | CAP ALUM 6.8UF 20% 50V RADIAL | 56% | View |
| UCY2W6R8MPD | Nichicon | CAP ALUM 6.8UF 20% 450V RADIAL | 52% | View |
Submit your RFQ for ULD2D6R8MPD and get a quote within 24 hours.
