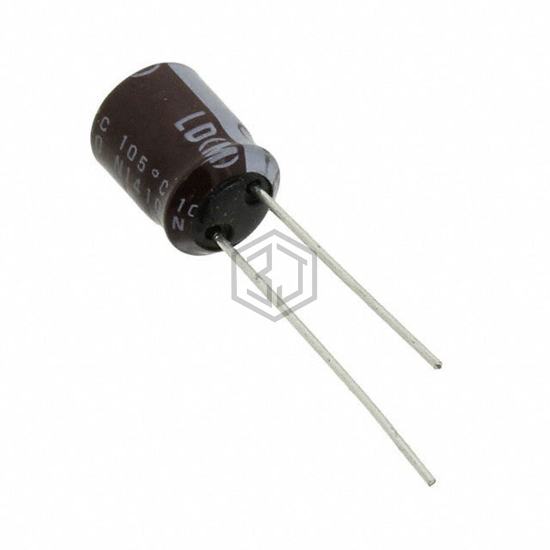

CAP ALUM 5.6UF 20% 200V RADIAL
ULD2D5R6MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5.6UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,763
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5.6 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 56 mA @ 120 Hz |
| Ripple Current @ High Frequency | 112 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2D5R6MPD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200LLE5.6MEFCT78X9 | Rubycon | CAP ALUM 5.6UF 20% 200V RADIAL | 100% | View |
| 200LLE5.6MEFCTA8X9 | Rubycon | CAP ALUM 5.6UF 20% 200V RADIAL | 100% | View |
| 200LLE5R6MEFC8X9 | Rubycon | CAP ALUM 5.6UF 20% 200V RADIAL | 100% | View |
| UVC2G5R6MPD1TD | Nichicon | CAP ALUM 5.6UF 20% 400V RADIAL | 72% | View |
| 50ZL5.6MEFCTZ4X7 | Rubycon | CAP ALUM 5.6UF 20% 50V RADIAL | 71% | View |
| 860160672006 | Würth Elektronik | CAP ALUM 5.6UF 20% 50V RADIAL | 70% | View |
