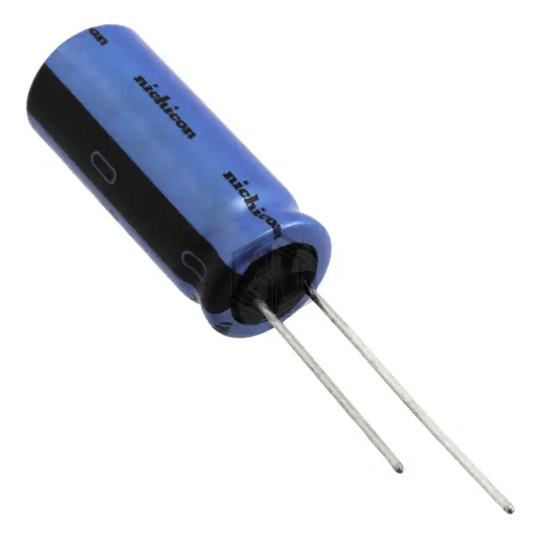

CAP ALUM 2200UF 20% 25V RADIAL
UKT1E222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,418
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT1E222MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25WXA2200M18X16 | Rubycon | CAP ALUM 2200UF 20% 25V RADIAL | 100% | View |
| EKMG350ELL222ML25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 88% | View |
| MAL213635222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 79% | View |
| ELXY250ELL222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 77% | View |
| 10PX2200MEFC10X16 | Rubycon | CAP ALUM 2200UF 20% 10V RADIAL | 63% | View |
| 228KXM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 25V RADIAL | 60% | View |
Submit your RFQ for UKT1E222MHD and get a quote within 24 hours.
