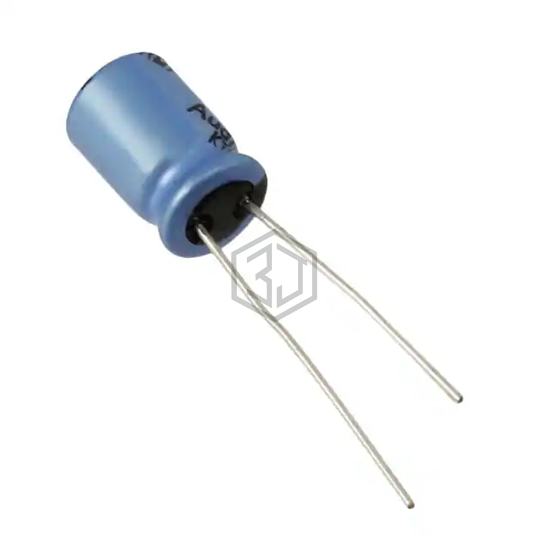

CAP ALUM 330UF 20% 16V RADIAL
UKT1C331MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,825
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 265 mA @ 120 Hz |
| Ripple Current @ High Frequency | 397.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT1C331MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RJA331M1CBK-0811S | SURGE | CAP ALUM 330UF 20% 16V RADIAL | 99% | View |
| MAL214064331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V RADIAL | 73% | View |
| 672D337H025DT2C | Vishay Sprague | CAP ALUM 330UF 25V RADIAL | 71% | View |
| RJA331M1HBK-1016S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 57% | View |
| MAL216031331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 56% | View |
| EEU-FC1E331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for UKT1C331MPD1TA and get a quote within 24 hours.
