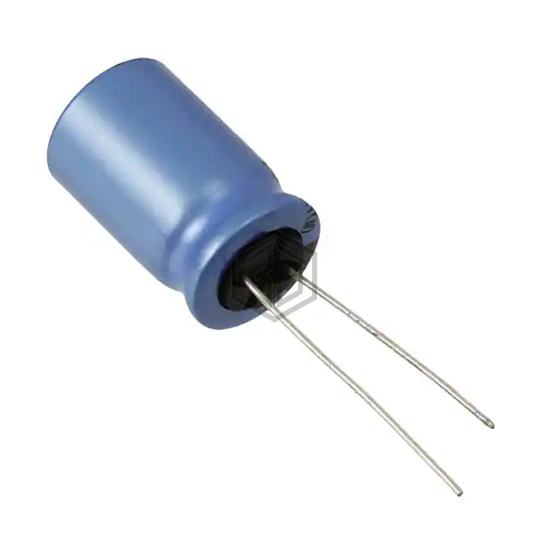

CAP ALUM 3300UF 20% 10V RADIAL
UKT1A332MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,178
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT1A332MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3PX3300MEFCT810X20 | Rubycon | CAP ALUM 3300UF 20% 6.3V RADIAL | 79% | View |
| EEU-FC1C332SB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 58% | View |
| EEU-FC1C332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 58% | View |
| B41888D7338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V RADIAL | 56% | View |
| B41689A5338Q001 | EPCOS - TDK Electronics | CAP ALUM 3300UF 25V AXIAL | 56% | View |
| ELXV250ELL332MM30S | United Chemi-Con | CAP ALUM 3300UF 20% 25V RADIAL | 52% | View |
