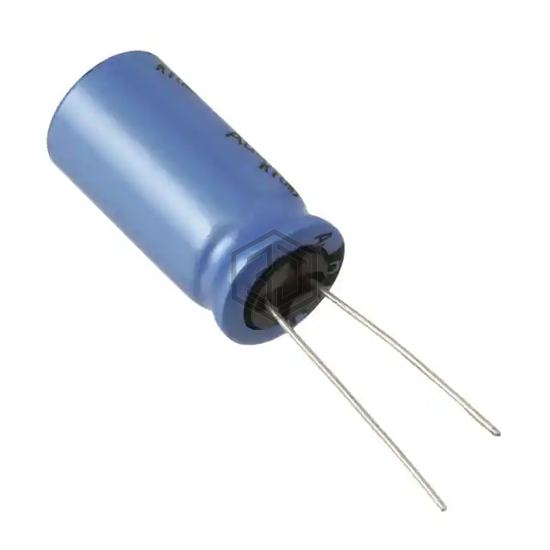

CAP ALUM 4700UF 20% 6.3V RADIAL
UKT0J472MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,444
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.288 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT0J472MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 478RZM6R3M1820 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 6.3V RADIAL | 100% | View |
| UPA0J472MHD | Nichicon | CAP ALUM 4700UF 20% 6.3V RADIAL | 73% | View |
| EEU-HD1C472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 66% | View |
| 25WXA4700MEFC18X25 | Rubycon | CAP ALUM 4700UF 20% 25V RADIAL | 65% | View |
| 601D478F015GL1 | Vishay Sprague | CAP ALUM 4700UF 15V AXIAL | 56% | View |
| EEU-FC1A472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 54% | View |
