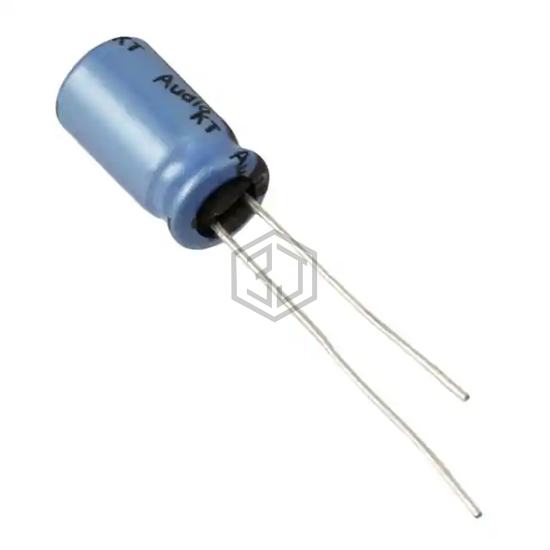

CAP ALUM 330UF 20% 6.3V RADIAL
UKT0J331MED1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 9,558
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 292.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKT0J331MED1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG10VB331M6X11LL | United Chemi-Con | CAP ALUM 330UF 20% 10V RADIAL | 85% | View |
| UPM0J331MED | Nichicon | CAP ALUM 330UF 20% 6.3V RADIAL | 81% | View |
| LXZ10VB331M6X15LL | United Chemi-Con | CAP ALUM 330UF 20% 10V RADIAL | 78% | View |
| ECA-1CHG331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V RADIAL | 65% | View |
| B41858C4337M | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 16V RADIAL | 58% | View |
| 337RZM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
