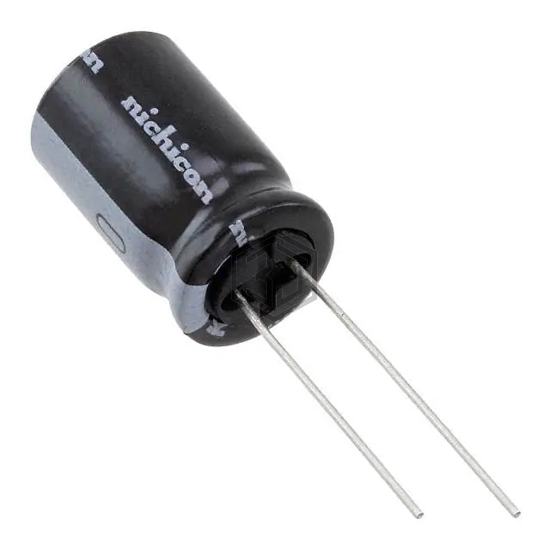

CAP ALUM 330UF 20% 35V RADIAL
UKL1V331MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,726
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKL1V331MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SM1H331MPN1020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 85% | View |
| EKZH250ETD331MHB5D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 83% | View |
| 25YXH330MEFCTA8X16 | Rubycon | CAP ALUM 330UF 20% 25V RADIAL | 80% | View |
| EGXF500ELL331MJ20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL TH | 80% | View |
| ESMG250ETD331MHB5D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 79% | View |
| ELXZ250EC3331MH15D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 77% | View |
