CAP ALUM 220UF 10% 63V RADIAL

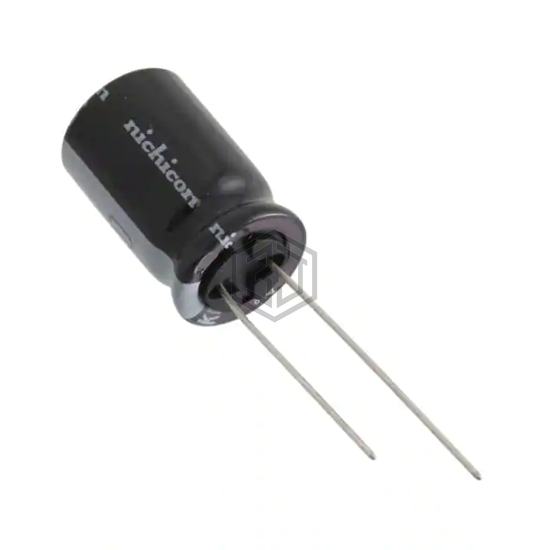

UKL1J221KHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 10% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 338
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±10% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 825 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UKL1J221KHD and get a quote within 24 hours.
