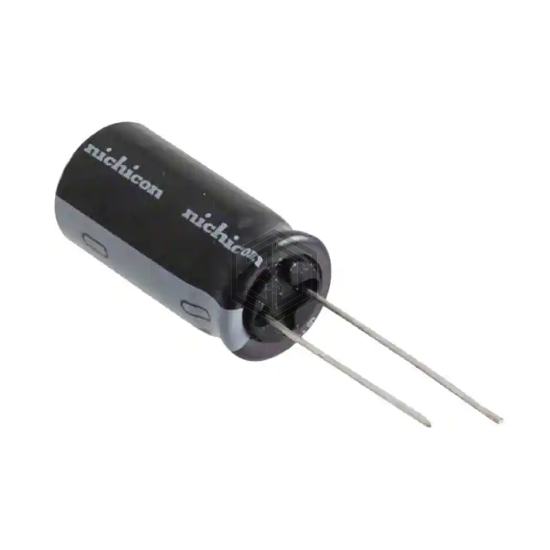

CAP ALUM 680UF 10% 25V RADIAL
UKL1E681KHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 10% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 717
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±10% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.215 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKL1E681KHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE160EC3681MH20D | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 84% | View |
| UHE1C681MPD1TA | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 82% | View |
| 100PX680MEFC16X31.5 | Rubycon | CAP ALUM 680UF 20% 100V RADIAL | 74% | View |
| EEU-FM1C681LB | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 72% | View |
| MAL211918681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 63V AXIAL | 56% | View |
| EGXF630ELL681MK30S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL TH | 53% | View |
