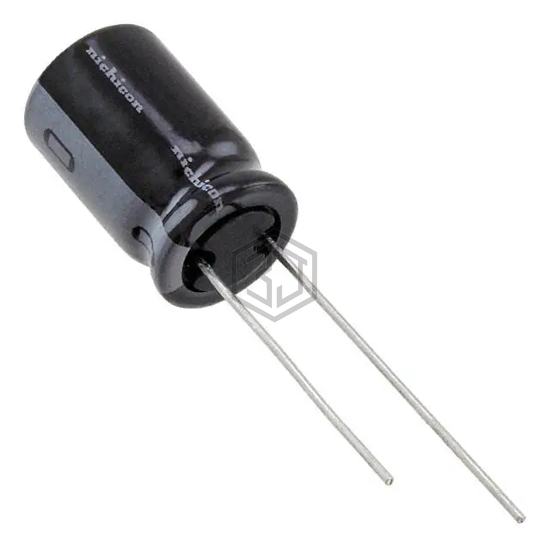

CAP ALUM 470UF 10% 10V RADIAL
UKL1A471KPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 10% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 456
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±10% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 530 mA @ 120 Hz |
| Ripple Current @ High Frequency | 795 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKL1A471KPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1VM471 | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 74% | View |
| SN471M6R3ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 6.3V RADIAL | 72% | View |
| ESW477M025AH9KA | KEMET | CAP ALUM RAD 105C | 72% | View |
| ED1V471MP51016 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 56% | View |
| ELXY500EC5471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| MAL213699475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V RADIAL | 54% | View |
