CAP ALUM 6800UF 20% 6.3V RADIAL

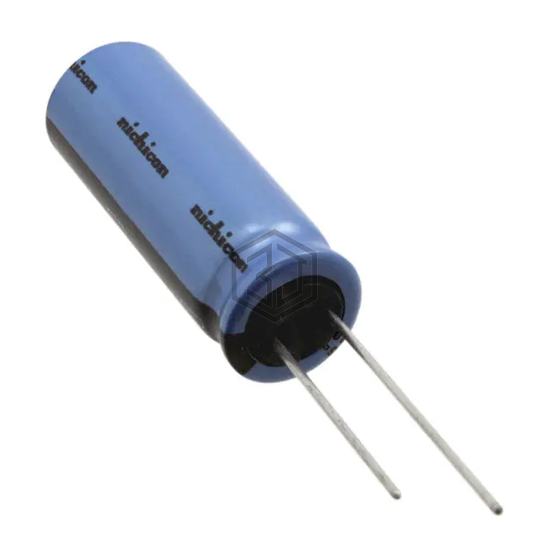

UKA0J682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,195
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.36 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.564 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UKA0J682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-HD1A682B | Panasonic Electronic Components | CAP ALUM 6800UF 20% 10V RADIAL | 79% | View |
| SEK682M010ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 10V RADIAL | 77% | View |
| EKMQ160ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 73% | View |
| MAL211844682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V T/H | 73% | View |
| B41858C3688M9 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 10V RADIAL | 58% | View |
| B41858C3688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 10V RADIAL | 58% | View |
