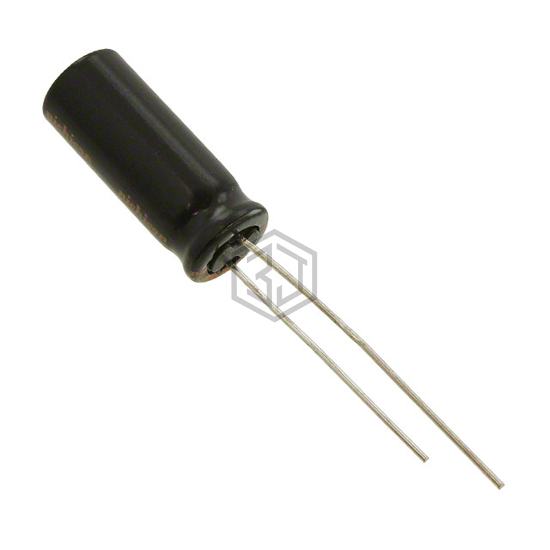

CAP ALUM 680UF 20% 16V RADIAL
UHZ1C681MPM3 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,066
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz |
| Impedance | 9 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHZ1C681MPM3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D687M020DM3D | Vishay Sprague | CAP ALUM 680UF 20% 20V RADIAL | 86% | View |
| LGN2Z681MELY45 | Nichicon | CAP ALUM 680UF 20% 180V SNAP | 67% | View |
| 381LQ681M160H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 160V SNAP | 65% | View |
| EKY-630ELL681ML25S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 57% | View |
| EKMM451VSN681MA60U | United Chemi-Con | CAP ALUM 680UF 20% 450V SNAP | 56% | View |
| 381LQ681M250J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 250V SNAP | 56% | View |
