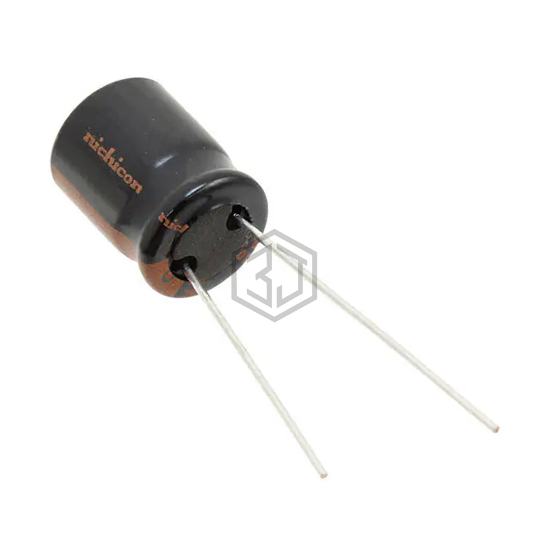

CAP ALUM 680UF 20% 16V RADIAL
UHZ1C681MPM is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,236
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHZ1C681MPM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 687LMX200M2DD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 680UF 20% 200V SNAP | 64% | View |
| EEU-FM1H681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 50V RADIAL | 63% | View |
| EKMM251VSN681MQ50S | United Chemi-Con | CAP ALUM 680UF 20% 250V SNAP | 63% | View |
| EEU-FC1C681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 62% | View |
| 10ZLJ680M8X16 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 57% | View |
| EKMH251VNN681MA35U | United Chemi-Con | CAP ALUM 680UF 20% 250V SNAP | 56% | View |
Submit your RFQ for UHZ1C681MPM and get a quote within 24 hours.
