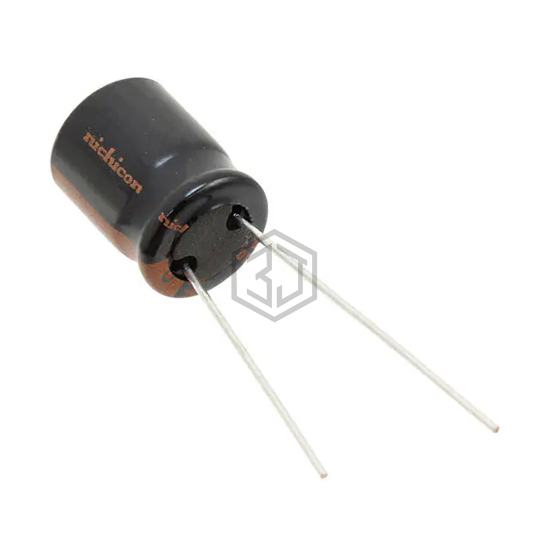

CAP ALUM 680UF 20% 10V RADIAL
UHZ1A681MPM6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,754
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.288 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHZ1A681MPM6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35TXW680MEFC8X40 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 68% | View |
| LGG2E681MELB30 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 68% | View |
| EKMH201VNN681MA25S | United Chemi-Con | CAP ALUM 680UF 20% 200V SNAP | 68% | View |
| 35ZL680MEFCSG12.5X20 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 67% | View |
| 180MXC680MEFC25X35 | Rubycon | CAP ALUM 680UF 20% 180V SNAP | 66% | View |
| 16ZLK680M8X20 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 65% | View |
Submit your RFQ for UHZ1A681MPM6 and get a quote within 24 hours.
