CAP ALUM 1500UF 20% 50V RADIAL

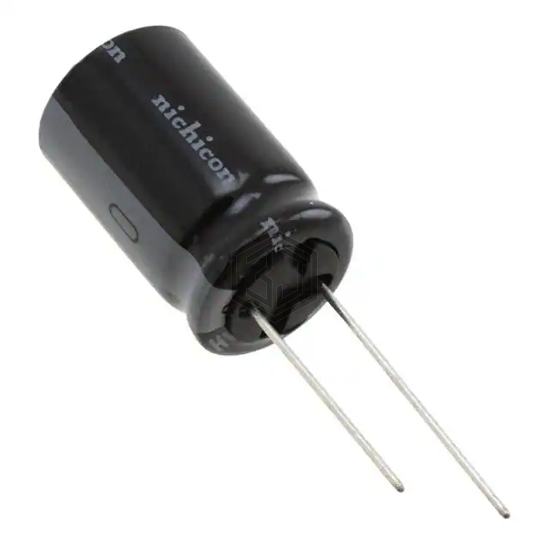

UHW1H152MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,107
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.962 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.27 A @ 100 kHz |
| Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW1H152MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KY35VB152M12X35LL | United Chemi-Con | CAP ALUM 1500UF 20% 35V RADIAL | 85% | View |
| 250MXC1500MEFC35X50 | Rubycon | CAP ALUM 1500UF 20% 250V SNAP | 61% | View |
| MAL214666152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V RADIAL | 60% | View |
| MAL212015152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V AXIAL | 56% | View |
| B41692A5158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 25V AXIAL | 54% | View |
| B43508A2158M67 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 50% | View |
