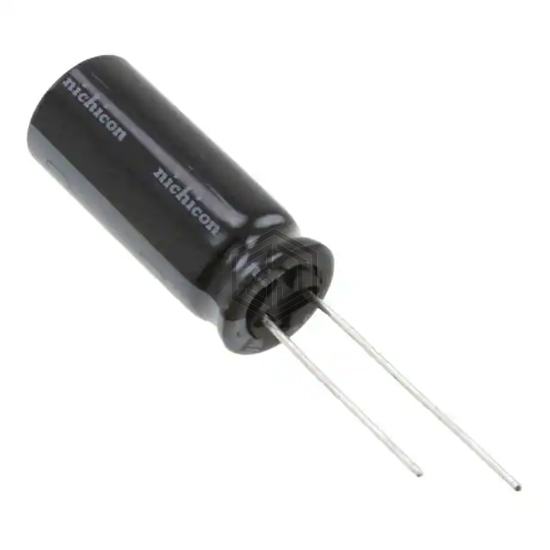

CAP ALUM 3300UF 20% 25V RADIAL
UHW1E332MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 8,668
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.12 A @ 100 kHz |
| Impedance | 11 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW1E332MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41696C5338Q7 | EPCOS - TDK Electronics | CAP ALUM 3300UF 25V AXIAL | 87% | View |
| B41895A5338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 25V RADIAL | 84% | View |
| UHD1C332MHD1CC | Nichicon | CAP ALUM 16V POLAR | 79% | View |
| REF1625332M016B | KYOCERA AVX | CAP ALUM 3.3MF 20% 16V RADIAL TH | 75% | View |
| MAL215851332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 50V SNAP | 57% | View |
| 10ZLQ3300MEFC10X25 | Rubycon | CAP ALUM 3300UF 20% 10V RADIAL | 56% | View |
