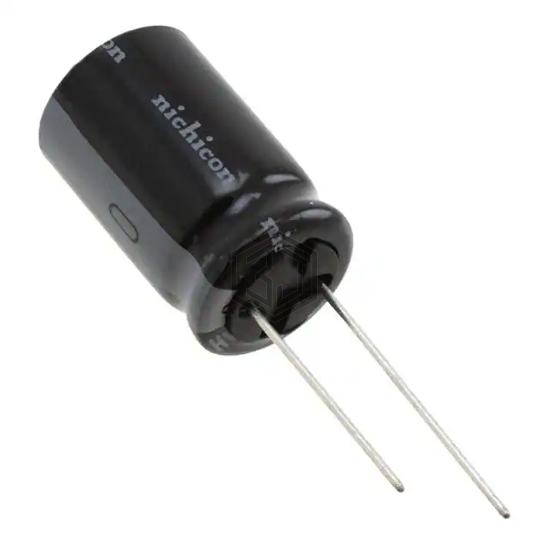

CAP ALUM 10000UF 20% 6.3V RADIAL
UHW0J103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 4,504
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.048 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.81 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHW0J103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41043A2109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 6.3V RADIAL | 79% | View |
| 16YXG10000MEFCGC18X40 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 78% | View |
| VHT10000M10 | NTE Electronics, Inc | CAP ALUM 10000UF 20% 10V RADIAL | 70% | View |
| MAL214234103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 66% | View |
| 381LQ103M063K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 63V SNAP | 63% | View |
| MAL211814103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V AXIAL | 52% | View |
