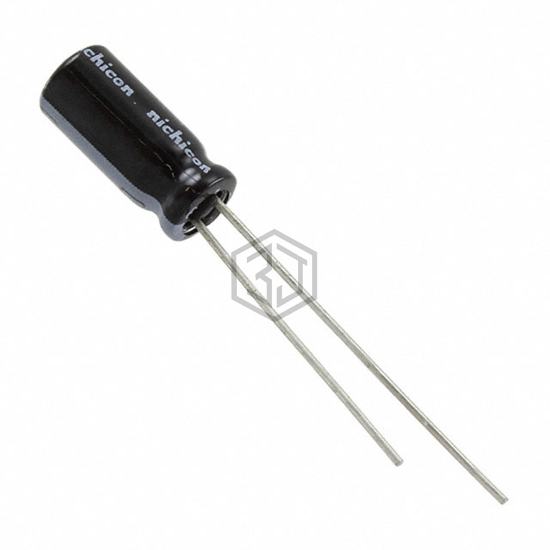

CAP ALUM 47UF 20% 35V RADIAL
UHV1V470MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,992
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 144 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1V470MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00AA247F00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 35V RADIAL | 87% | View |
| MALREKB00AA247EL0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V RADIAL | 78% | View |
| TBE1H470MCD1LT | Nichicon | CAP ALUM 47UF 20% 50V AXIAL | 77% | View |
| UHC0J470MDD | Nichicon | CAP ALUM 47UF 20% 6.3V RADIAL | 77% | View |
| B43041F2476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 250V RADIAL | 71% | View |
| EEA-GA1V470H | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V RADIAL | 69% | View |
