CAP ALUM 68UF 20% 25V RADIAL

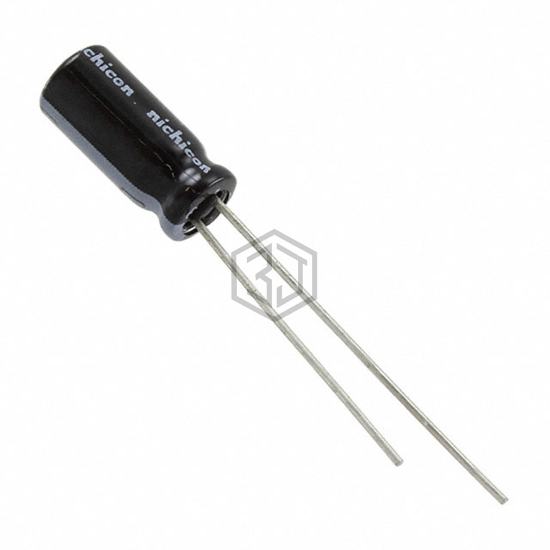

UHV1E680MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,395
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 144 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1E680MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXG68MEFCT810X16 | Rubycon | CAP ALUM 68UF 20% 100V RADIAL | 74% | View |
| EEU-FR1C680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 16V RADIAL | 73% | View |
| EEA-GA1E680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 25V RADIAL | 71% | View |
| EEU-FM1V680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V RADIAL | 63% | View |
| EEU-FR1V680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V RADIAL | 63% | View |
| MAL212627689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 40V AXIAL | 53% | View |
