CAP ALUM 150UF 20% 25V RADIAL

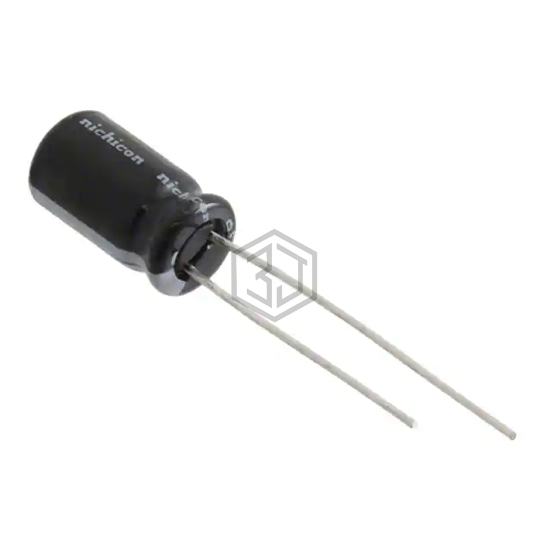

UHV1E151MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 1,514
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1E151MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EV1E151MP26311EF5U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 92% | View |
| UPJ1E151MPD1TA | Nichicon | CAP ALUM 150UF 20% 25V RADIAL | 75% | View |
| ELXG251VNN151MP25U | United Chemi-Con | CAP ALUM 150UF 20% 250V SNAP | 56% | View |
| MAL215031151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 50V RADIAL | 55% | View |
| 6.3ZL150MEFCTZ6.3X7 | Rubycon | CAP ALUM 150UF 20% 6.3V RADIAL | 53% | View |
| LP151M200A1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 200V SNAP | 53% | View |
Submit your RFQ for UHV1E151MED1TA and get a quote within 24 hours.
