CAP ALUM 680UF 20% 16V RADIAL

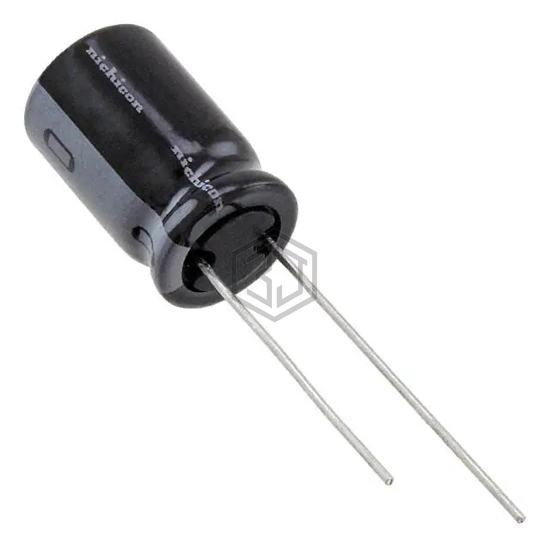

UHV1C681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,099
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 816 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.36 A @ 100 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1C681MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1C681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 95% | View |
| ESY687M016AH2AA | KEMET | CAP ALUM 680UF 20% 16V RADIAL TH | 92% | View |
| 10ZLJ680MT78X16 | Rubycon | CAP ALUM 680UF 20% 10V RADIAL | 79% | View |
| EKZE100ELL681MH15D | United Chemi-Con | CAP ALUM 680UF 20% 10V RADIAL | 71% | View |
| ELXV101EC3681MM40S | United Chemi-Con | CAP ALUM 680UF 20% 100V RADIAL | 62% | View |
| 35ZL680MEFCG412.5X20 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 52% | View |
Submit your RFQ for UHV1C681MPD and get a quote within 24 hours.
