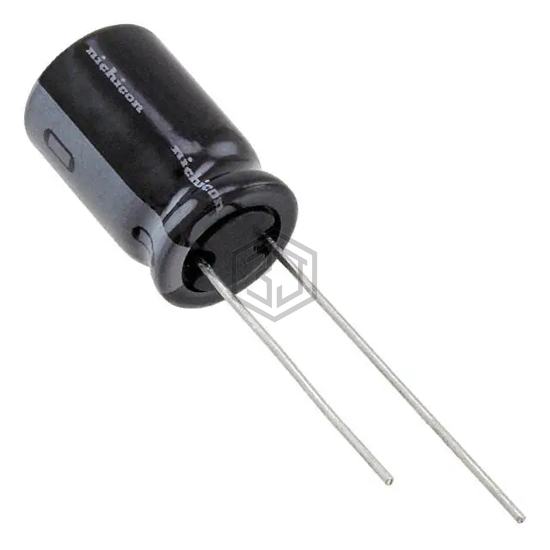

CAP ALUM 1000UF 20% 16V RADIAL
UHV1C102MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,922
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.089 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 30 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1C102MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1C102L | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 98% | View |
| UBW1E102MHD | Nichicon | CAP ALUM 1000UF 20% 25V RADIAL | 81% | View |
| 860040478012 | Würth Elektronik | CAP ALUM 1000UF 20% 25V RADIAL | 76% | View |
| UPA1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 73% | View |
| MAL215061102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 68% | View |
| B41858C6108M9 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 50V RADIAL | 67% | View |
Submit your RFQ for UHV1C102MPD1TD and get a quote within 24 hours.
