CAP ALUM 100UF 20% 16V RADIAL

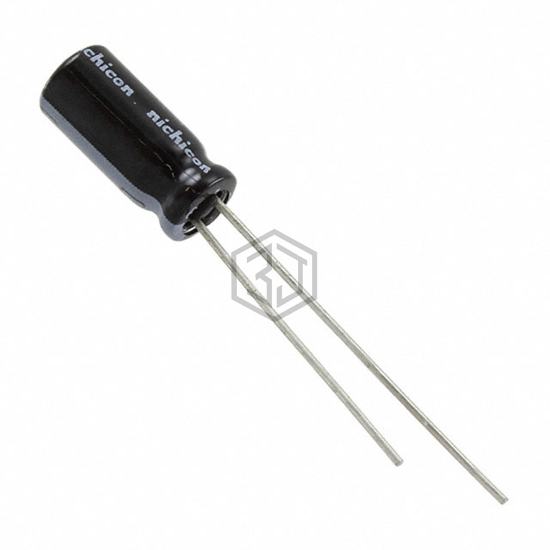

UHV1C101MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,132
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 144 mA @ 120 Hz |
| Ripple Current @ High Frequency | 360 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1C101MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH107M016AC3AA | KEMET | CAP ALUM RAD 105C | 83% | View |
| UPJ1C101MED1TD | Nichicon | CAP ALUM 100UF 20% 16V RADIAL | 79% | View |
| 517D107M025AA8PE3 | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 74% | View |
| ESE107M025AE3AA | KEMET | CAP ALUM RAD 105C | 70% | View |
| 400PX100MEFC18X35.5 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 60% | View |
| MAL213659101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 100V RADIAL | 52% | View |
