CAP ALUM 4700UF 20% 10V RADIAL

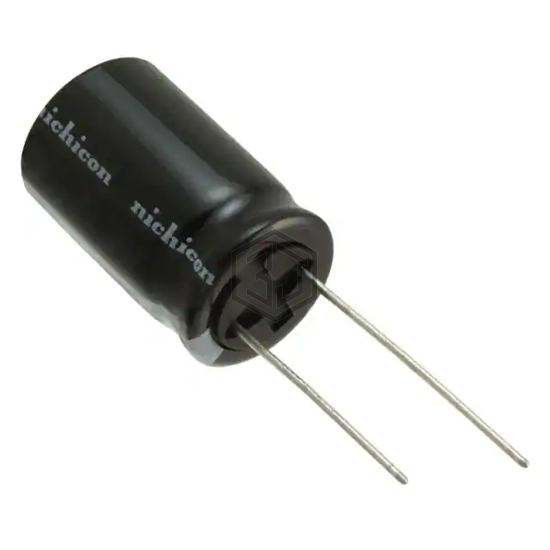

UHV1A472MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,086
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.795 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1A472MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160278044 | Würth Elektronik | CAP ALUM 4700UF 20% 10V RADIAL | 71% | View |
| MAL225652472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 80V SNAP | 66% | View |
| LGU2A472MELC | Nichicon | CAP ALUM 4700UF 20% 100V SNAP | 64% | View |
| MAL224635472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 64% | View |
| EKMQ500ELL472MN40S | United Chemi-Con | CAP ALUM 4700UF 20% 50V RADIAL | 55% | View |
| MAL212544472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V AXIAL | 53% | View |
Submit your RFQ for UHV1A472MHD and get a quote within 24 hours.
