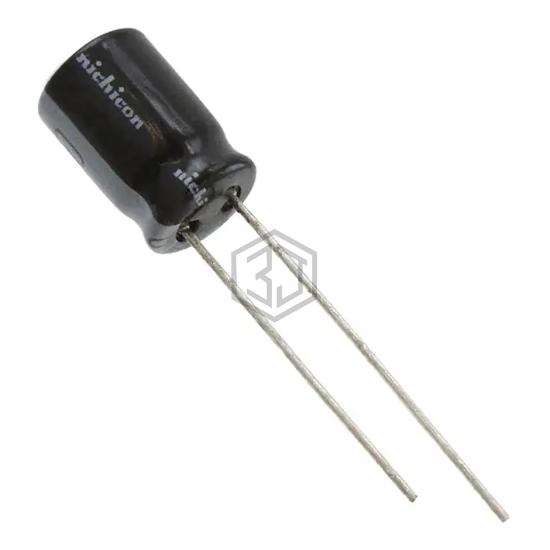

CAP ALUM 470UF 20% 10V RADIAL
UHV1A471MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,402
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 59 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1A471MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860040374006 | Würth Elektronik | CAP ALUM 470UF 20% 16V RADIAL | 67% | View |
| 25YXH470MEFCTA8X20 | Rubycon | CAP ALUM 470UF 20% 25V RADIAL | 65% | View |
| MAL214030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
| 672D477G025DM5C | Vishay Sprague | CAP ALUM 470UF 25V RADIAL | 56% | View |
| 35YXS470MEFC10X16 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 55% | View |
| 35YXJ470MCA10X16 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 54% | View |
