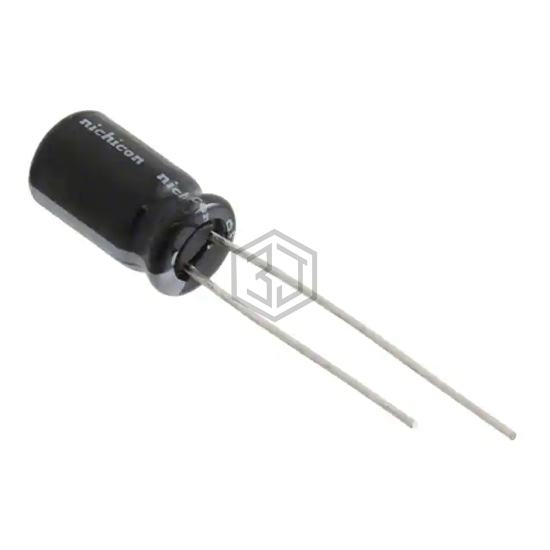

CAP ALUM 220UF 20% 10V RADIAL
UHV1A221MED is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,812
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 100 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UHV1A221MED is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECA-1AHG221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 80% | View |
| 227CKE016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 16V RADIAL | 79% | View |
| EEU-FC1C221BJ | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V RADIAL | 69% | View |
| ESE227M025AG3AA | KEMET | CAP ALUM 220UF 20% 25V RADIAL | 62% | View |
| EKMG6R3ELL221ME11D | United Chemi-Con | CAP ALUM 220UF 20% 6.3V RADIAL | 56% | View |
| ELXG401VNN221MA35S | United Chemi-Con | CAP ALUM 220UF 20% 400V SNAP | 56% | View |
